navigation bar is misplaced when the window gets smaller

[crazycells]

Hi @phenomlab ,

when I shrink the window, the navigation menu items are misplaced and overlap with the topic title.

[phenomlab]

@crazycells this should be resolved now. I’ve had to adjust the breakpoints in Bootstrap (version 3 which NodeBB uses) to accommodate this, and it’ll fire at anything below 1199px (1000 just looks odd…)

Here’s the modified CSS in case you want it

@media (max-width: 1199px) {
  .navbar-header {
      float: none;
  }
  .navbar-left,.navbar-right {
      float: none !important;
  }
  .navbar-toggle {
      display: block;
  }
  .navbar-collapse {
      border-top: 1px solid transparent;
      box-shadow: inset 0 1px 0 rgba(255,255,255,0.1);
  }
  .navbar-fixed-top {
      top: 0;
      border-width: 0 0 1px;
  }
  .navbar-collapse.collapse {
      display: none!important;
  }
  .navbar-nav {
      float: none!important;
      margin-top: 7.5px;
  }
  .navbar-nav>li {
      float: none;
  }
  .navbar-nav>li>a {
      padding-top: 10px;
      padding-bottom: 10px;
  }
  .collapse.in{
      display:block !important;
  }
  div#nav-dropdown {
    display: none;
}
 .visible-xs-block, .visible-xs-inline, .visible-xs-inline-block {
    display: initial !important;
}
.container-fluid>.navbar-collapse, .container-fluid>.navbar-header, .container>.navbar-collapse, .container>.navbar-header {
    margin-right: -15px !important;
    margin-left: -15px !important;
}
.account .cover {
    background-size: auto;
    background-color: var(--breadcrumb);
    height: 150px;
}
.account .cover .avatar-wrapper {
    top: 80px;
    margin-top: 39px !important;
}
}

Note that there may be other elements that will require adjustment.

Try it out and let me know, but I think this resolves the problem.

NOTE: I’m using var in CSS, so you may want to either remove this line, or replace it with something else

background-color: var(--breadcrumb);

[crazycells]

the same is happening when I search for something in a larger window.

[phenomlab]

@crazycells what screen size does this happen in ? I’d expect some overlap if the size is outside of the standard viewport ranges. The standard ones in use here are applied of course.

[crazycells]

@phenomlab it happens right below 1000 px.

Since we had a similar problem before, I came up with this solution:

@media (min-width: 768px) and (max-width: 991px) {

    .nav > li > a {
    padding-right: 6px;
    padding-left: 6px;
    }
    .unread-count::after {
    left: 15px;
    top: 11px;
    }
}

@media (min-width: 992px) and (max-width: 1199px) {

    .nav > li > a {
    padding-right: 11px;
    padding-left: 11px;
    }
    .unread-count::after {
    left: 21px;
    top: 11px;
    }
}


So, in order not to push whole navigation bar items to the second raw, the distance between them is re-adjusted.

But normally, when the items are put in the second row, everything including the topic title and posts is pushed down accordingly. But here it is different, it is overlapping…

[phenomlab]

@crazycells Thanks. I’ll need to investigate this.

[crazycells]

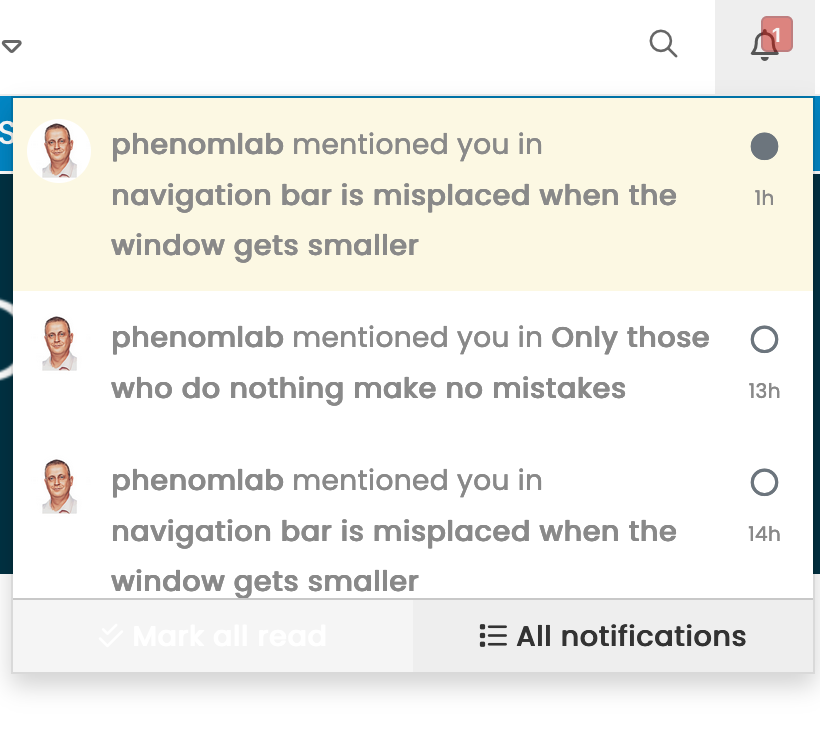

@phenomlab additionally, “mark all read” option at the bottom of the notification panel looks completely white and not visible, FYI…

[phenomlab]

@crazycells thanks. Can you let me know which theme you’re using ? I think this is from the adjusted core css but want to be sure.

[crazycells]

@phenomlab said in navigation bar is misplaced when the window gets smaller:

@crazycells thanks. Can you let me know which theme you’re using ? I think this is from the adjusted core css but want to be sure.

I am using the default one.

[crazycells]

@crazycells said in navigation bar is misplaced when the window gets smaller:

@phenomlab said in navigation bar is misplaced when the window gets smaller:

@crazycells thanks. Can you let me know which theme you’re using ? I think this is from the adjusted core css but want to be sure.

I am using the default one.

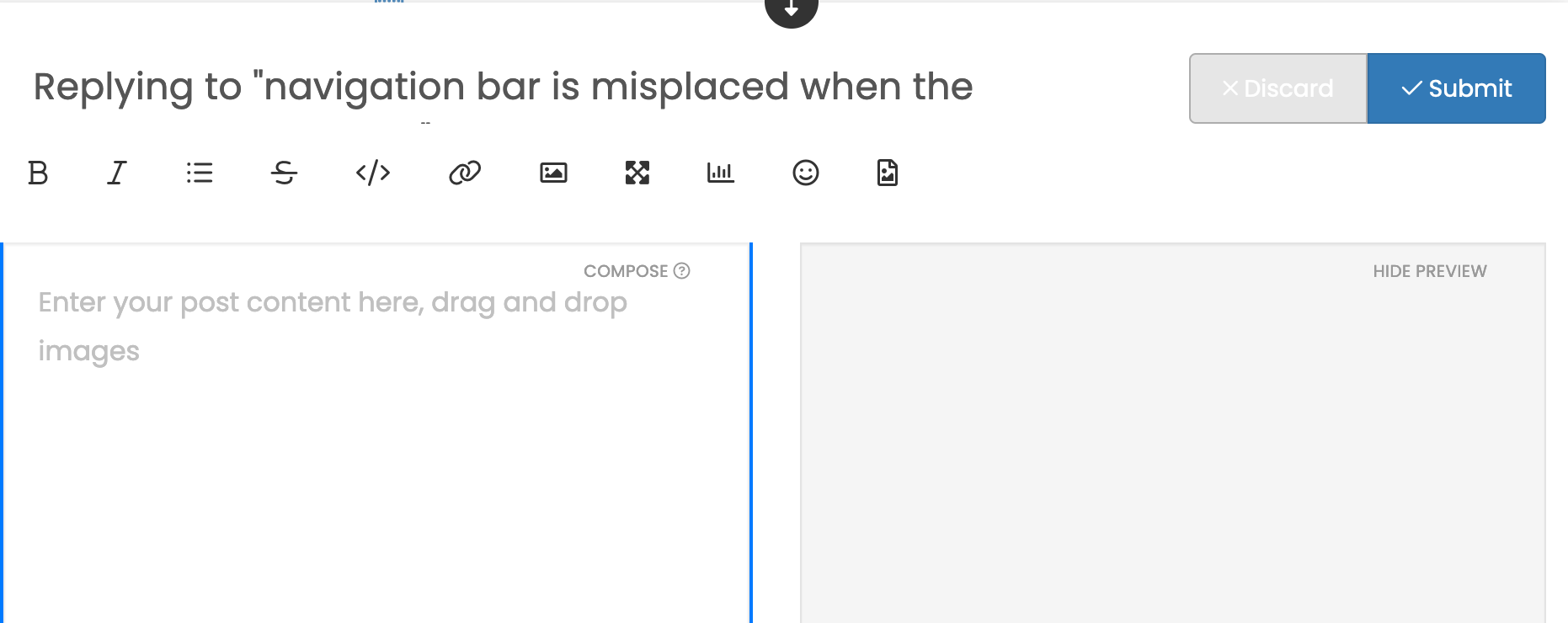

the same thing for “Discard” button…

[phenomlab]

@crazycells thanks. That explains my suspicion. I’ll need to address that as the themes inherit from the custom core.

[DownPW]

I have the same things for the navbar when I have a lot of icons on the left.

the solution I found is to move the icons of the navbar to the left to have more room when you click on the search button and no longer have this rather annoying phenomenon

/*left*/
@media (min-width: 768px) {
.container-fluid>.navbar-collapse, .container-fluid>.navbar-header, .container>.navbar-collapse, .container>.navbar-header {
    margin-right: 0;
    margin-left: -40px;
}
}

/*right*/
@media (min-width: 768px) {
.navbar-right {
    float: right!important;
    margin-right: -45px;
}
}

[phenomlab]

@crazycells said in navigation bar is misplaced when the window gets smaller:

@phenomlab additionally, “mark all read” option at the bottom of the notification panel looks completely white and not visible, FYI…

This has been fixed

[phenomlab]

@crazycells said in navigation bar is misplaced when the window gets smaller:

Hi @phenomlab ,

when I shrink the window, the navigation menu items are misplaced and overlap with the topic title.

This should also be fixed. In fact, a much cleaner way to do this is to remove the float on the navbar class

@media (min-width: 992px) and (max-width: 1199px) {
.navbar-nav {
    float: none;
    margin: 0;
}
}

[crazycells]

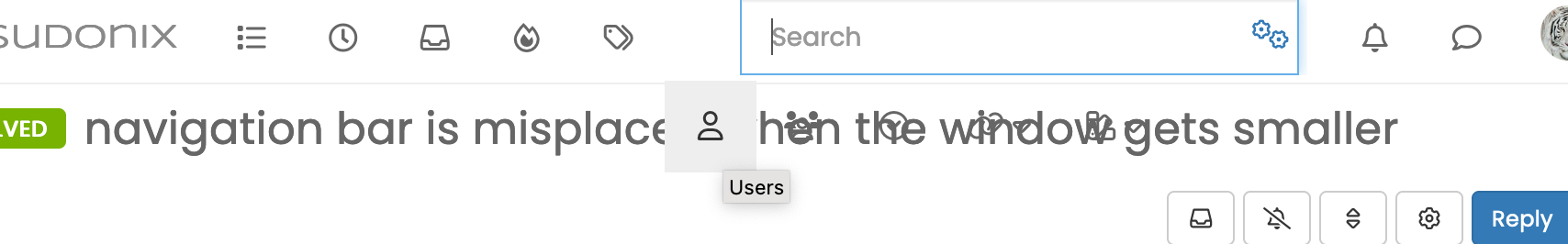

@phenomlab I think the bug is still there, when I shrink the window or when I click the search button, the navigation bar icons are still overlapping with the title.

[crazycells]

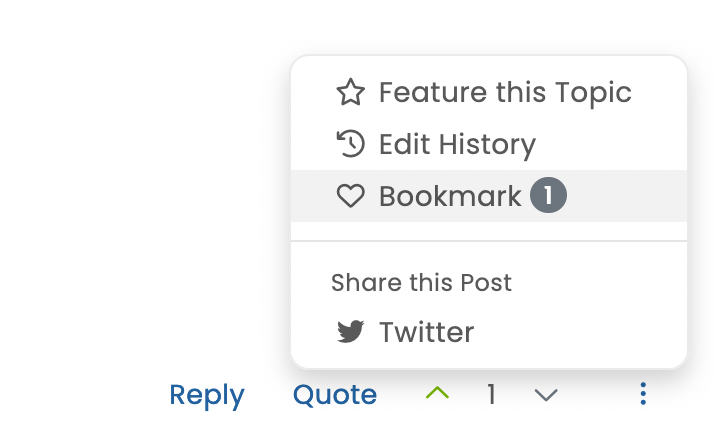

additionally, the bookmark function is working but it is not filling the heart button… I think it should turn to a dark heart from a light heart to indicate that it is bookmarked… this is how I can see the difference.

[phenomlab]

@crazycells What screen size is this ? The removal of float happens at 992px

[phenomlab]

@crazycells said in navigation bar is misplaced when the window gets smaller:

additionally, the bookmark function is working but it is not filling the heart button… I think it should turn to a dark heart from a light heart to indicate that it is bookmarked… this is how I can see the difference.

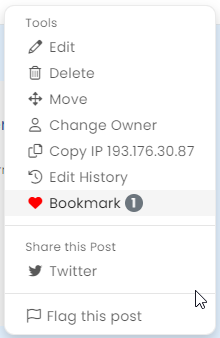

fixed

[crazycells]

@phenomlab said in navigation bar is misplaced when the window gets smaller:

@crazycells What screen size is this ? The removal of float happens at 992px

from ~787 to ~1000 px …

below ~787 px , it goes to the mobile view…

[phenomlab]

@crazycells I’ll have another look at this.

[phenomlab]

@crazycells this should be resolved now. I’ve had to adjust the breakpoints in Bootstrap (version 3 which NodeBB uses) to accommodate this, and it’ll fire at anything below 1199px (1000 just looks odd…)

Here’s the modified CSS in case you want it

@media (max-width: 1199px) {
  .navbar-header {
      float: none;
  }
  .navbar-left,.navbar-right {
      float: none !important;
  }
  .navbar-toggle {
      display: block;
  }
  .navbar-collapse {
      border-top: 1px solid transparent;
      box-shadow: inset 0 1px 0 rgba(255,255,255,0.1);
  }
  .navbar-fixed-top {
      top: 0;
      border-width: 0 0 1px;
  }
  .navbar-collapse.collapse {
      display: none!important;
  }
  .navbar-nav {
      float: none!important;
      margin-top: 7.5px;
  }
  .navbar-nav>li {
      float: none;
  }
  .navbar-nav>li>a {
      padding-top: 10px;
      padding-bottom: 10px;
  }
  .collapse.in{
      display:block !important;
  }
  div#nav-dropdown {
    display: none;
}
 .visible-xs-block, .visible-xs-inline, .visible-xs-inline-block {
    display: initial !important;
}
.container-fluid>.navbar-collapse, .container-fluid>.navbar-header, .container>.navbar-collapse, .container>.navbar-header {
    margin-right: -15px !important;
    margin-left: -15px !important;
}
.account .cover {
    background-size: auto;
    background-color: var(--breadcrumb);
    height: 150px;
}
.account .cover .avatar-wrapper {
    top: 80px;
    margin-top: 39px !important;
}
}

Note that there may be other elements that will require adjustment.

Try it out and let me know, but I think this resolves the problem.

NOTE: I’m using var in CSS, so you may want to either remove this line, or replace it with something else

background-color: var(--breadcrumb);
