Setup OGProxy for use in NodeBB

Moved Let's Build It
  • For anyone who has been following the below thread, this is for you in terms of installation on your own forum. As with all good demos and POC’s, this site runs the OGProxy and you’ll see it working as you trawl through this post.

    https://sudonix.org/topic/495/ogproxy-a-replacement-for-iframely

    First things first

    There’s some things we need to cover first before we start to deploy any code. Remember how in the thread above, I mentioned that OGProxy is in fact a server and client, and not a plugin. I could have made the client side a plugin, but to me, there’s little point given the length of code required to actually execute the previewLinks() function.

    That said, there are actually three distinct elements that make up the OGProxy framework. These are

    1. A nodeJS based server that is responsible for working in the background, and makes use of the existing open-graph-scraper package you’ll find in NPM - no point in reinventing the wheel here 🙂

    https://www.npmjs.com/package/open-graph-scraper

    1. A proxy server is required, and needs to run in a subdomain of your parent. For example, if your domain is something.com then you need to setup an A record at your DNS provider for proxy and have it point to the same IP address where your web server sits that hosts NodeBB. You’ll then need to create an nginx config for this new site (see later in this walkthrough), and access that as https://proxy.something.com (the https is an expected standard these days, so don’t be surprised by this).

    2. Client side execution of the previewLinks() function. NodeBB comes with it’s own custom JS panel, and we’ll be making good use of that.

    3. Some custom CSS

    If you are curious as to what each line of the node server is doing, I have provided a detailed explanation here


    How does the OGProxy work?

    The OGProxy sets up a server using the NodeJS Express framework to handle a route for fetching Open Graph data from a given URL. Let’s go through the code and understand its functionality:

    1. Importing Required Modules:

      • express: The Express framework for creating the server.
      • open-graph-scraper: A module for scraping Open Graph data from a web page.
      • cors: A middleware for enabling Cross-Origin Resource Sharing.
      • url: The built-in Node.js module for working with URLs.
      • memory-cache: A simple in-memory cache for storing and retrieving data.
      • axios: A popular HTTP client for making requests.
      • meta-parser: A module for parsing meta properties from HTML.
      • cheerio: A library for parsing and manipulating HTML.
      • path: The built-in Node.js module for working with file paths.
    2. Creating an Express App and Configuring the Server:

      • express() creates an instance of the Express application.
      • port specifies the port number on which the server will listen.
      • app.use(cors({ origin: 'https://sudonix.org' })) enables Cross-Origin Resource Sharing, allowing requests from the specified origin.
    3. Handling the Route:

      • app.get('/ogproxy', async (req, res) => {...}) defines a route for handling GET requests to ‘/ogproxy’.
      • The callback function is an asynchronous function that receives the request (req) and response (res) objects.
    4. Request Validation:

      • let { url } = req.query; extracts the ‘url’ query parameter from the request.
      • const requestApiKey = req.headers['x-api-key']; retrieves the value of the ‘x-api-key’ header from the request.
      • If the request API key doesn’t match the expected apiKey, a 401 Unauthorized response is sent.
      • If the ‘url’ parameter is missing or doesn’t start with ‘http’, the URL is constructed using the request’s protocol and host.
    5. Caching:

      • The code checks if the requested URL is already cached in the memory-cache. If so, the cached result is returned as a JSON response.
      • If the URL is not cached, the code proceeds to scrape the Open Graph data.
    6. Scraping Open Graph Data:

      • The ogs module is used to scrape Open Graph data from the provided URL asynchronously.
      • If the scraping is successful and the required data is present, the code proceeds to fetch additional data.
    7. Fetching Additional Data:

      • The code uses axios to fetch the content of the website associated with the URL.
      • The fetched HTML content is passed to cheerio for parsing and manipulation.
      • meta-parser is used to extract meta properties from the HTML content.
      • The extracted meta properties and other relevant data are stored in the metadata object.
    8. Handling Favicon:

      • If a favicon URL is present in the metadata, the code resolves the full URL based on the provided URL.
      • The code uses axios to fetch the favicon image as an array buffer.
      • The favicon data is then converted to a base64 string and appended with the appropriate data URL prefix.
      • If an error occurs while fetching the favicon, an error message is logged to the console.
    9. Modifying and Caching the Results:

      • The metaProperties and faviconUrl are added to the results obtained from the Open Graph scraping.
      • The URL and its corresponding results are cached using the memory-cache module.
      • The results are sent as a JSON response.
    10. Error Handling:

      • If any error occurs during the scraping or processing of data, a 500 Internal Server Error response is sent.
    11. Starting the Server:

      • app.listen(port, () => {...}) starts the server and listens on the specified port.
      • A log message is printed to the console indicating the server is running.

    Overall, this code sets up an Express server that acts as a proxy for fetching Open Graph data from a given URL. It includes caching to improve performance and handles additional data retrieval such as website content, meta properties, and favicon images. The server responds to requests with the scraped Open Graph data in a JSON format.

    1. Build the server

    I’ve simplified this process so that you only need to perform the basic steps to get up and running. At this point. I’m, going to assume you have the directory structure in place already for your subdomain - now navigate to the root path, for example

    cd /home/sudonix.org/domains/proxy.sudonix.org


    We are going to be taking the files from my Git Repository located here

    https://github.com/phenomlab/ogproxy

    Once you are in the right place, issue

    git clone https://github.com/phenomlab/ogproxy


    You should see something like this being returned

    Cloning into 'ogproxy'...
    remote: Enumerating objects: 28, done.
    remote: Counting objects: 100% (28/28), done.
    remote: Compressing objects: 100% (26/26), done.
    remote: Total 28 (delta 9), reused 0 (delta 0), pack-reused 0
    Unpacking objects: 100% (28/28), 234.21 KiB | 4.78 MiB/s, done.


    Now move into the ogproxy directory

    cd ogproxy/


    Once you are there, issue

    npm install


    This will install the required libraries for the server to work. There may be some messages generated that refer to legacy or outdated libraries - for the time being, this is ok, and you can ignore it

    npm WARN deprecated har-validator@5.1.5: this library is no longer supported
    npm WARN deprecated querystring@0.2.0: The querystring API is considered Legacy. new code should use the URLSearchParams API instead.
    npm WARN deprecated uuid@3.4.0: Please upgrade  to version 7 or higher.  Older versions may use Math.random() in certain circumstances, which is known to be problematic.  See https://v8.dev/blog/math-random for details.
    npm WARN deprecated request@2.88.2: request has been deprecated, see https://github.com/request/request/issues/3142

    added 148 packages, and audited 149 packages in 2s


    At this point, you could feasibly run

    node server


    Which will respond with a message telling you that the service is listening on port 2000 (which you can change if you need to). However, for the time being, leave it - if you’ve already executed this command, kill it 🙂

    Edit the server.js file

    Locate server.js in the same directory structure, and look for these two lines

    const apiKey = 'YOUR_API_KEY_HERE';

    app.use(cors({ origin: 'FULL_FQDN_OF_YOUR_ORIGIN_HERE' }));


    For the first part, you’ll need to generate an API key. You can do that here

    https://generate-random.org/api-key-generator?count=1&length=64&type=mixed-numbers&prefix=

    64bit is certainly enough to keep the server secured and is the recommendation. Keys of other lengths seem to be truncated in transit.


    You should land up with a key like the below after you click “Generate API Keys”

    9XWxMB8y8IMv3NXeg4yA58xvfC4Js9AgaqyH28IGfJStcG6kEzNl5QD26j09bV5M

    Save that key in the space where you see YOUR_API_KEY_HERE so it looks like

    const apiKey = '9XWxMB8y8IMv3NXeg4yA58xvfC4Js9AgaqyH28IGfJStcG6kEzNl5QD26j09bV5M';


    Now in the origin section, this is the full FQDN (Fully Qualified Domain Name) of your site. For example, if you use https://forum.example.com as your forum’s URL, then you use this etc.

    app.use(cors({ origin: 'https://forum.example.com' }));


    Save the server script, and close the editor. Don’t be tempted to touch anything else 🙂

    Create a service so that your Proxy runs unattended

    Let’s create a file called /etc/systemd/system/ogproxy.service

    Inside this new file, paste the below code

    [Unit]
    Description=OGProxy Server
    After=network.target

    [Service]
    ExecStart=/usr/bin/node /path/to/your/subdomain/ogproxy/server.js
    WorkingDirectory=/path/to/your/subdomain/ogproxy
    Restart=always
    RestartSec=3

    [Install]
    WantedBy=multi-user.target


    Obviously, you’ll need to replace /path/to/your/subdomain/ with the actual path you are using.

    Save the file and exit the editor.

    Now issue

    sudo systemctl start ogproxy


    And

    sudo systemctl enable ogproxy


    If evrything went well, then your new ogproxy service should be running. You can test this with

    systemctl status ogproxy


    You should receive output similar to the below


    if you see the above (with your settings, and not mine), then the service is running.

    2. Configure the NGINX reverse proxy

    Locate your nginx.conf file that relates to the subdomain you created in step 1. Edit that file

    Your config should be made to look like the below

    server {
    	server_name [YOUR PROXY URL];
    	listen [IP_ADDRESS];
    	root /home/sudonix.org/domains/proxy.sudonix.org/ogproxy;
    	index index.php index.htm index.html;
      location / {
        proxy_set_header Access-Control-Allow-Origin *;
        proxy_set_header Host $host;
        proxy_pass http://localhost:2000;
        proxy_redirect off;
        proxy_set_header Host $host;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Api-Key $http_x_api_key;
      }
      location /images {
        index index.php index.htm index.html;
        root /home/sudonix.org/domains/proxy.sudonix.org/ogproxy;
      }
    	fastcgi_split_path_info "^(.+\.php)(/.+)$";
    	listen [IP  ADDRESS]:443 ssl http2;
    	ssl_certificate [PATH TO YOUR SSL CERT]
    	ssl_certificate_key [PATH TO YOUR SSL KEY]
    }



    You obviously need to replace the values below with your own

    [YOUR PROXY URL]
    [IP_ADDRESS]
    [PATH TO YOUR SSL CERT]
    [PATH TO YOUR SSL KEY]


    The above is a base config to get things working, and you may require more (for example access and error logging etc) - up to you.

    Save the config, and issue

    nginx -t

    if the config is ok with no errors, restart nginx

    3. Client-side code

    Now for the icing on the cake…

    In NodeBB, navigate to /admin/appearance/customise#custom-js

    Add all of the code you see in the below link at the end of your custom JS file

    https://github.com/phenomlab/ogproxy/blob/main/function.js

    Find the below two lines

            var proxy = "FULL_FQDN_OF_YOUR_OGPROXY_HERE";
            var apiKey = "YOUR_API_KEY_HERE";


    So, for example, those two values should be something like this

            var proxy = "https://proxy.mydomain.com";
            var apiKey = "9XWxMB8y8IMv3NXeg4yA58xvfC4Js9AgaqyH28IGfJStcG6kEzNl5QD26j09bV5M";


    Save the custom js

    4. Restart the OGProxy service

    sudo systemctl start ogproxy


    Verify

    sudo systemctl status ogproxy


    4. Custom CSS

    You’ll no doubt want some custom CSS for the classes that this code generates, so feel free to copy these classes in your custom CSS

    .card img.card-favicon {
        max-width: 21px;
        max-height: 21px;
        margin-right: 10px;
    }
    h4.card-site-title {
        color: var(--bs-body-color);
        text-transform: capitalize;
    }
    .card.card-preview {
        margin: 20px 0 20px 0;
        width: 50%;
    }
    .card.card-wrapper {
        background: none;
        width: 450px;
    }
    [component="chat/message"] .card.card-preview {
        margin: 20px 0 20px 0;
        width: 30%;
    }
    .card.card-preview img:not(.card-favicon) {
        object-fit: cover;
        width: 100%;
        max-height: 15rem;
        border-top-left-radius: 0.375rem;
        border-top-right-radius: 0.375rem;
    }
      .card.card-preview .img-fluid {
        max-width: 100% !important;
      }
      .card-preview p.card-text {
        font-size: 80%;
        color: var(--bs-body-color);
      }
      .card-preview h5.card-title {
        font-weight: 600;
        font-size: 120%;
        color: var(--bs-body-color);
    }


    Obviously, you’ll need to amend these to suit your site, and tastes 🙂 (and also note the use of variables, so you may need to substitute those where applicable)

    Take a deep breath… And test it!!

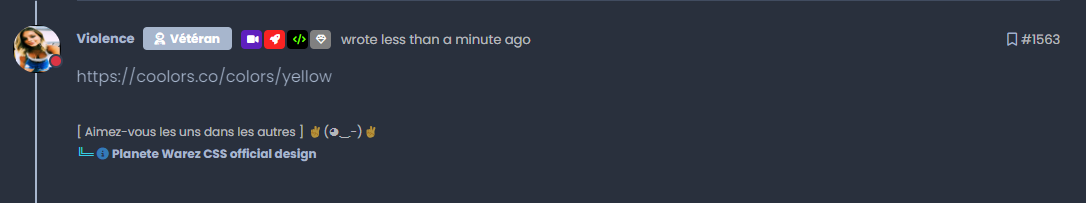

  • after install seems to not work on my dev instance :


  • @DownPW did you follow all of the steps?

    Any error messages displayed in the console?

  • yep all the steps

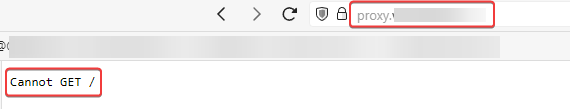

    I have this when I attack subdomain https :


    No error on nodebb console

    nginx -t is good

  • maybe a firewall issue, i will test

  • @DownPW that’s normal. You’re getting that as a response because the server is secured and the headers must send the API key on request.

    Without it, the server will refuse the connection. Can you confirm that the API key you generated exists in both the server.js file and the custom js script?

  • @DownPW shouldn’t be. It’s using your own internet connection from the client.

  • hmmm OK.

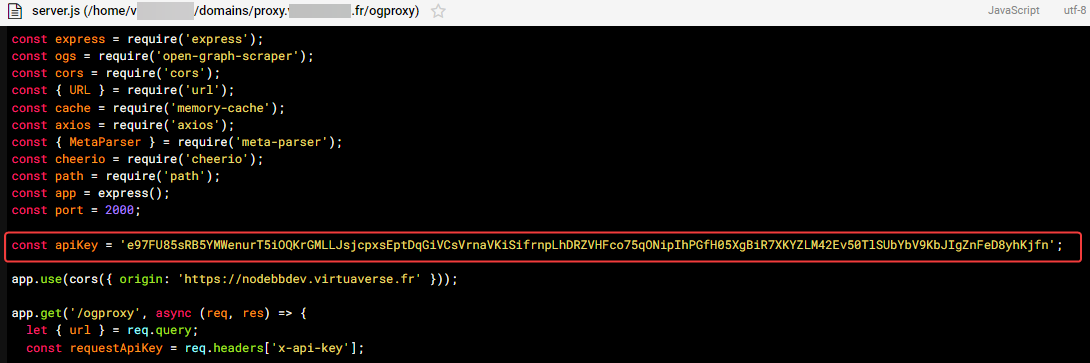

    Yep API key are in server.js file and custom js script

  • @DownPW are you sure there is no error in the console?

  • nope no error

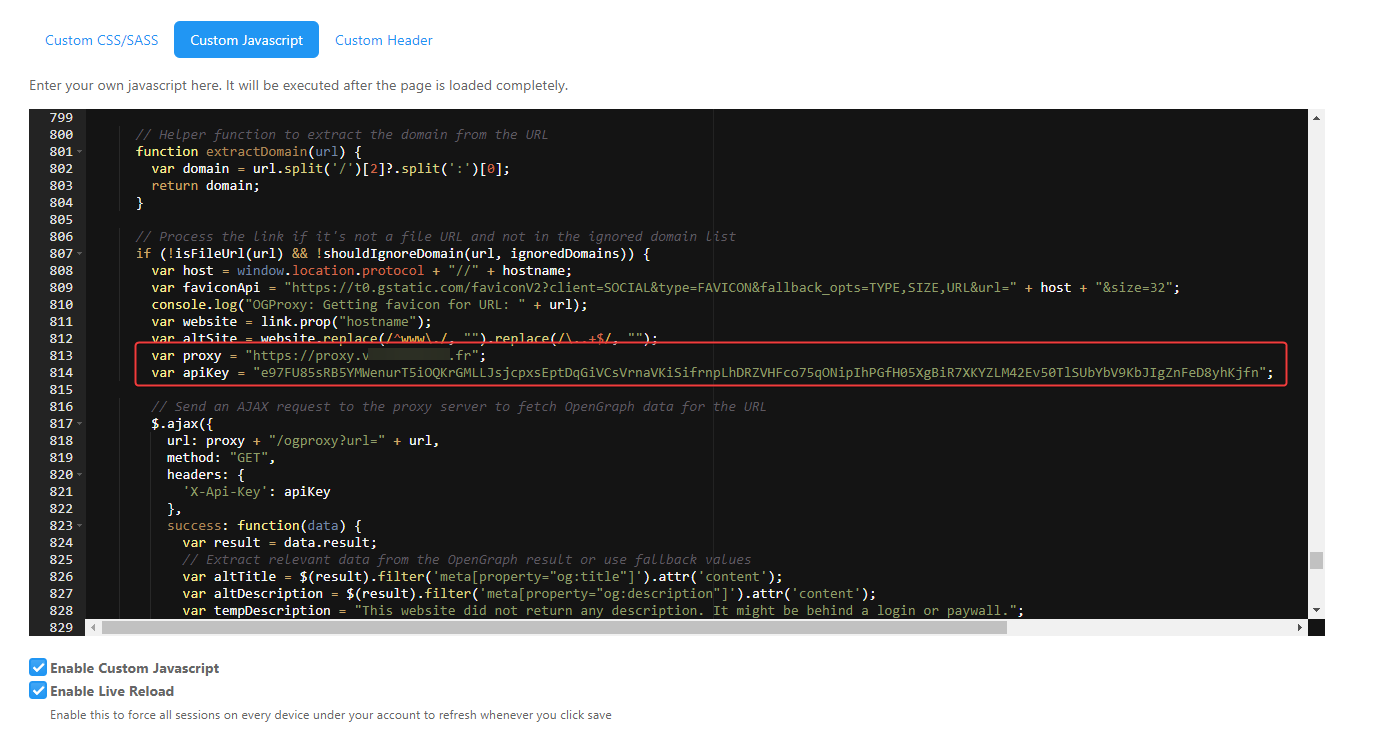

  • for custom js script, API key is just on ACP/customJS and not on /home/XXXX/domains/proxy.XXXXXX.XXX/ogproxy/function.js file because not write in tuto

  • @DownPW function.js is just the code that gets pasted into the custom JS console 😁

  • image.png


  • @DownPW can you change the key so it’s 64bit? Just a theory I want to test. You’ll need to change it in the function and the server.js file.

  • Ok I will test now

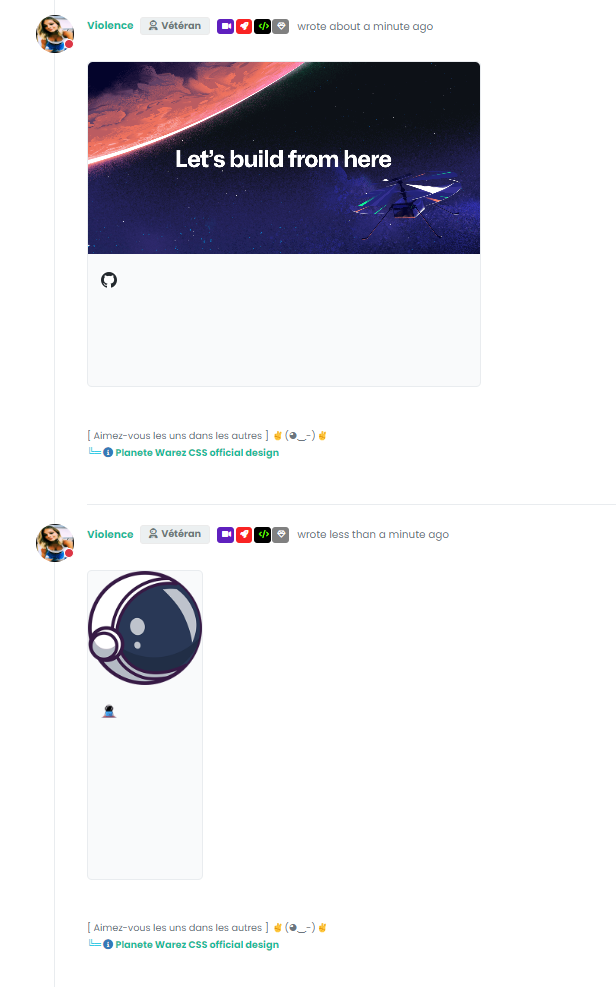

  • Seem to be better. Just CSS problem I guess. I must see that


  • @DownPW yes, you can use the CSS I provided in the original post as a starting point.

    I’m guessing that the server received a truncated API key because of the length so the authentication failed.

  • But see the second link, I don’t think it’s a CSS problem no ?

  • @DownPW yes, try the CSS provided in the article.

  • Already Done.
    It seems i’m not be able to change text color after test. Idem with important


  • 1 Votes
    26 Posts
    1k Views

    Yes ogproxy too is functionnal on dev

  • 15 Votes
    27 Posts
    1k Views

    For anyone else coming here and is struggling to get pm2 to work with Umami (as I did - it started, but never seemed to work after a reboot which is pretty useless), you can use the below. Obviously, change the parts noted inside the [brackets]. Follow the below instructions:

    Instructions

    Open a terminal and create a new systemd service file:

    sudo nano /etc/systemd/system/umami.service

    Add the following content to the file:

    [Unit] Description=Umami Analytics Server After=network.target [Service] Type=simple User=[umami user] WorkingDirectory=[path to umami] ExecStart=/usr/local/bin/node [path to umami]/node_modules/.bin/next start Restart=on-failure [Install] WantedBy=multi-user.target

    Replace [umami user] with the username of the user that should run the Umami service, and [path to umami] with the actual path to your Umami installation.

    Save the file and exit the editor.

    Reload the systemd manager configuration:

    sudo systemctl daemon-reload

    Enable the Umami service to start on boot:

    sudo systemctl enable umami.service

    Start the Umami service:

    sudo systemctl start umami.service

    You can check the status of the service with:

    sudo systemctl status umami.service

    This systemd service file will ensure that Umami starts automatically when the system boots, and it will restart the service if it fails. Remember to adjust the WorkingDirectory and ExecStart paths according to where Umami is installed on your system, and ensure that Node.js is installed and accessible at /usr/bin/node (or adjust the path to Node.js as necessary).

  • 19 Votes
    35 Posts
    2k Views

    @DownPW said in Threaded chat support for NodeBB:

    Better like this : add shadow and border-left on self answer

    Of course - you style to your own requirements and taste 🙂 I’ll commit that CSS we discussed yesterday also

  • 50 Votes
    146 Posts
    18k Views

    Updated git for above change

    https://github.com/phenomlab/nodebb-harmony-threading/commit/14a4e277521d83d219065ffb14154fd5f5cfac69

  • 20 Votes
    28 Posts
    719 Views

    thanks Mark.

  • 14 Votes
    14 Posts
    637 Views

    Just circling back here as I’ve been helping @cagatay this morning on his site, and noticed that if you use a mixture of fa-brands and fa-solid then the code supplied above may produce some odd looking results.

    If this is the case, replace the function with this

    $(document).ready(function() { $.getJSON('/api/categories', function(data, status) { $.each(data.categories, function(key, value) { var iconClass = 'fa'; // Default to 'fa' if the icon type is not recognized // Check if the icon is FontAwesome Unicode if (this.icon.startsWith('&#x') || this.icon.startsWith('&#xf')) { iconClass = 'fa'; } else if (this.icon.startsWith('fab')) { iconClass = 'fab'; } var categorylist = $(" \ <li class='dropdown-item tree-root'><span class='category-menu'><i class='" + iconClass + " " + this.icon + "'></i><a style='display: inherit;' class='dropdown-item rounded-1' href='/category/" + this.slug + "'>" + this.name + "</a></span></li> \ <ul class='tree-branch' style='list-style: none;'>" + this.children.map(c => { var childIconClass = 'fa'; // Default to 'fa' for child icons // Check if the child icon is FontAwesome Unicode if (c.icon.startsWith('&#x') || c.icon.startsWith('&#xf')) { childIconClass = 'fas'; } else if (c.icon.startsWith('fab')) { childIconClass = 'fab'; } return `<li class='dropdown-item tree-node'><span class='category-menu-tree-node'><i class='${childIconClass} ${c.icon}'></i><a class='dropdown-item rounded-1' style='display: inherit;' href='/category/${c.slug}'>${c.name}</a></span></li>`; }).join(" ") + "</ul>" ); if ($(window).width() < 767) { $(".bottombar #thecategories").append(categorylist); } else { $(".sidebar-left #thecategories").append(categorylist); } }); }); });

    In fact, if you want to replace it anyway to make your experience “future proof”, you can use this code now 🙂

  • node vs nodejs confusion?

    Solved Configure
    2
    1 Votes
    2 Posts
    140 Views

    @eeeee have a look at the below

    https://docs.nodebb.org/installing/os/ubuntu/

    curl -sL https://deb.nodesource.com/setup_lts.x | sudo -E bash - sudo apt-get install -y nodejs

    You’ll notice that we are in fact “installing” NodeJS but never actually have a need to reference it. Here’s the nodejs --version command on my dev system


    More detail here

    https://askubuntu.com/questions/1030622/why-do-i-see-different-versions-of-node-and-nodejs

  • 11 Votes
    14 Posts
    596 Views

    @dave1904 excellent news. Thanks for the feedback
