NODEBB: Nginx error performance & High CPU

Solved Performance
69 3 36.3k 2
  • DownPWundefined DownPW

    OK.

    @phenomlab

    I resume in details.

    1- Stop nodebb
    2- Stop iframely
    3- Stop nginx
    4- Install redis server : sudo apt install redis-server
    5- Change nodebb Config.json file (can you verifiy this synthax please ? nodebb documentation tell “database”: 0 and not “database”: 5 - but maybe it’s just a name and i can use the same as mongo like “database”: nodebb , I moved the port directive) :

    {
    "url": "https://XX-XX.net",
    "secret": "XXXXXXXXXXXXXXXX",
    "database": "mongo",
   "port": [4567, 4568,4569],
    "mongo": {
        "host": "127.0.0.1",
        "port": "27017",
        "username": "XXXXXXXXXXX",
        "password": "XXXXXXXXXXX",
        "database": "nodebb",
        "uri": ""
    },
    "redis": {
        "host":"127.0.0.1",
        "port":"6379",
        "database": 5
    }
}

    6- Change nginx.conf :

    # add the below block for nodeBB clustering
upstream io_nodes {
    ip_hash;
    server 127.0.0.1:4567;
    server 127.0.0.1:4568;
    server 127.0.0.1:4569;
}

server {
	server_name XX-XX.net www.XX-XX.net;
	listen XX.XX.XX.X;
	listen [XX:XX:XX:XX::];
	root /home/XX-XX/nodebb;
	index index.php index.htm index.html;
	access_log /var/log/virtualmin/XX-XX.net_access_log;
	error_log /var/log/virtualmin/XX-XX.net_error_log;

# add the below block which will force all traffic into the cluster when referenced with @nodebb

location @nodebb {
     proxy_pass http://io_nodes;
    }

        location / {

		limit_req zone=flood burst=100 nodelay;
		limit_conn ddos 10;
		proxy_read_timeout 180;

                proxy_set_header X-Real-IP $remote_addr;
                proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
                proxy_set_header Host $http_host;
                proxy_set_header X-NginX-Proxy true;
               # It's necessary to set @nodebb here so that the clustering works
                proxy_pass @nodebb;
                proxy_redirect off;

                # Socket.IO Support
                proxy_http_version 1.1;
                proxy_set_header Upgrade $http_upgrade;
                proxy_set_header Connection "upgrade";
        }

	listen XX.XX.XX.XX:XXssl http2;
	listen [XX:XX:XX:XX::]:443 ssl http2;
	ssl_certificate /etc/ssl/virtualmin/166195366750642/ssl.cert;
	ssl_certificate_key /etc/ssl/virtualmin/166195366750642/ssl.key;
	if ($scheme = http) {
		rewrite ^/(?!.well-known)(.*) "https://XX-XX.net/$1" break;
	}
}

    7- restart redis server systemctl restart redis-server.service
    8- Restart nginx
    9- Restart iframely
    10- Restart nodebb
    11- test configuration

    crazycellsundefined

    @DownPW since you pointed it out, I just remembered. Since we know when this crowd will come and be online on our forum, that particular day, we switch off iframely and all preview plugins. That also helps to open the pages faster.

    0
  • crazycellsundefined crazycells

    @DownPW yes, this is the place to start:

    https://docs.nodebb.org/configuring/scaling/

    crazycellsundefined

    @phenomlab a general but related question. Since opening three ports help, is it possible to increase this number? For example, can we run 5 ports NodeBB at the same time to smooth the web page experience; or is “3” goldilocks number for maximum efficiency?

    0
  • crazycellsundefined crazycells

    @phenomlab a general but related question. Since opening three ports help, is it possible to increase this number? For example, can we run 5 ports NodeBB at the same time to smooth the web page experience; or is “3” goldilocks number for maximum efficiency?

    phenomlabundefined

    @crazycells It’s not necessarily the “Goldilocks” standard - it really depends on the system resources you have available. You could easily extend it as long as you allow for the additional port(s) in the nginx.conf file also.

    Personally, I don’t see the need for more than 3 though.

    Mark – Founder, Phenomlab Ltd
    Executive IT & Security Leadership
    Phenomlab Ltd

    2
  • phenomlabundefined phenomlab

    @crazycells It’s not necessarily the “Goldilocks” standard - it really depends on the system resources you have available. You could easily extend it as long as you allow for the additional port(s) in the nginx.conf file also.

    Personally, I don’t see the need for more than 3 though.

    DownPWundefined

    @phenomlab

    Ok redis is ok now. Thanks for your help 🙂

    I would like know to obtain the connecting clients Real IP on Nginx log.

    I read I have need ngx_http_realip_module for nginx but not active by default but I don’t know if virtualmin have this module enabled.

    PW and WS Spirit alive

    0
  • DownPWundefined DownPW

    @phenomlab

    Ok redis is ok now. Thanks for your help 🙂

    I would like know to obtain the connecting clients Real IP on Nginx log.

    I read I have need ngx_http_realip_module for nginx but not active by default but I don’t know if virtualmin have this module enabled.

    DownPWundefined

    @DownPW said in NODEBB: Nginx error performance & High CPU:

    @phenomlab

    Ok redis is ok now. Thanks for your help 🙂

    I would like know to obtain the connecting clients Real IP on Nginx log.

    I read I have need ngx_http_realip_modulefor nginx but not active by default but I don’t know if virtualmin have this module enabled.

    EDIT: OK it will be enabled by default on virtualmin :

    nginx -v


    PW and WS Spirit alive

    0
  • DownPWundefined DownPW

    @DownPW said in NODEBB: Nginx error performance & High CPU:

    @phenomlab

    Ok redis is ok now. Thanks for your help 🙂

    I would like know to obtain the connecting clients Real IP on Nginx log.

    I read I have need ngx_http_realip_modulefor nginx but not active by default but I don’t know if virtualmin have this module enabled.

    EDIT: OK it will be enabled by default on virtualmin :

    nginx -v


    DownPWundefined

    @phenomlab

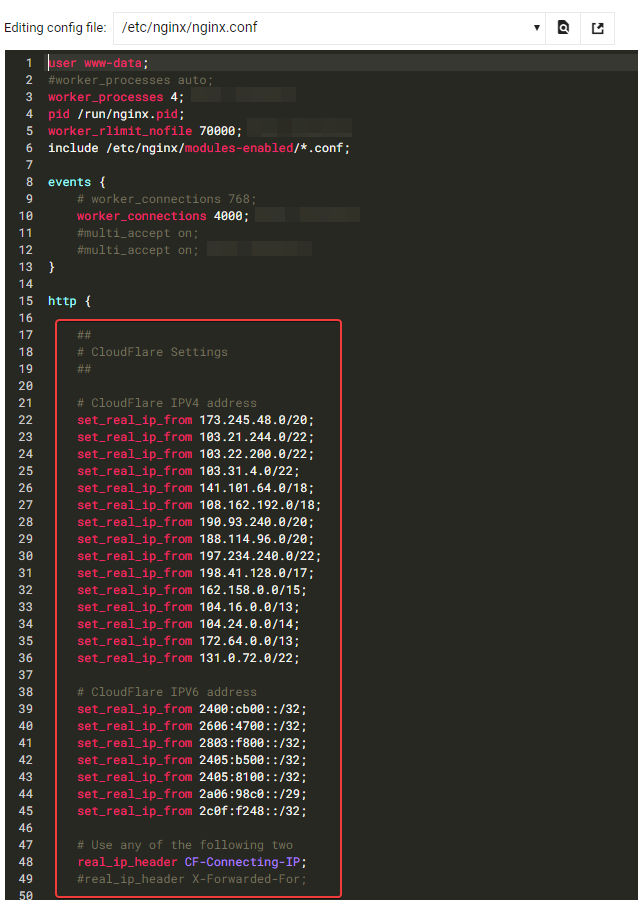

    I have activate ngx_http_realip_module on /etc/nginx/nginx.conf on http block like this :


    It seems to be good for you ?

    PW and WS Spirit alive

    0
  • DownPWundefined DownPW

    @phenomlab

    I have activate ngx_http_realip_module on /etc/nginx/nginx.conf on http block like this :


    It seems to be good for you ?

    phenomlabundefined

    @DownPW yes, that looks fine.

    Mark – Founder, Phenomlab Ltd
    Executive IT & Security Leadership
    Phenomlab Ltd

    1
  • phenomlabundefined phenomlab

    @DownPW yes, that looks fine.

    DownPWundefined

    @phenomlab

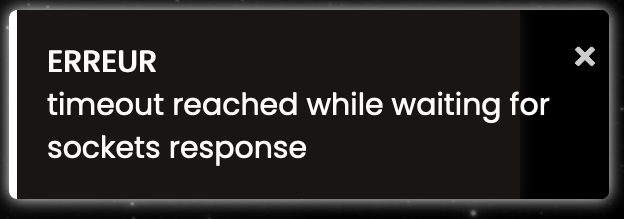

    We have sometimes this error, what do you think about it ?


    PW and WS Spirit alive

    0
  • DownPWundefined DownPW

    @phenomlab

    We have sometimes this error, what do you think about it ?


    phenomlabundefined

    @DownPW I suspect that’s a failure of the socket server to talk to redis, but the NodeBB Devs would need to confirm.

    Mark – Founder, Phenomlab Ltd
    Executive IT & Security Leadership
    Phenomlab Ltd

    0
  • phenomlabundefined phenomlab

    @DownPW I suspect that’s a failure of the socket server to talk to redis, but the NodeBB Devs would need to confirm.

    DownPWundefined

    @phenomlab

    Seems to be better with some scaling fix for redis on redis.conf. I haven’t seen the message yet since the changes I made

    # I increase it to the value of /proc/sys/net/core/somaxconn
tcp-backlog 4096


# I'm uncommenting because it can slow down Redis. Uncommented by default !!!!!!!!!!!!!!!!!!!
#save 900 1
#save 300 10
#save 60 10000

    If you have other Redis optimizations. I take all your advice

    https://severalnines.com/blog/performance-tuning-redis/

    PW and WS Spirit alive

    1
  • DownPWundefined DownPW has marked this topic as solved on
