Custom badges

Solved Customisation
103 4 30.1k 2
  • hi @phenomlab , in this topic where the solution is chosen:

    https://sudonix.org/topic/388/the-best-css-to-customize-our-logo

    verified badge and online status are overlapping. I guess it is not intended?

    @crazycells hmm, I’m not seeing that. Can you provide a screenshot?

  • @crazycells hmm, I’m not seeing that. Can you provide a screenshot?

    @phenomlab sure, here is how I see it:

    Screen Shot 2022-11-21 at 15.49.47.png

  • @phenomlab sure, here is how I see it:

    Screen Shot 2022-11-21 at 15.49.47.png

    @crazycells ah, yes, I know why. There’s a class I haven’t committed.

    Thanks. I’ll sort that out tomorrow.

  • @crazycells Let’s try this

    In /forum/admin/manage/groups/verified, remove the highlighted section


    We are then left with no text, but a clearer looking icon


    Now remove the previous CSS blocks I provided here

    Add replacement CSS

    .post-header a[href*="/forum/groups/verified"] {
        margin-right: 3px;
        margin-top: 1px;
        border-radius: 50%;
        line-height: 20px;
        display: inline-block;
        vertical-align: middle;
        text-align: center;
        overflow: hidden;
    }
    small.label.group-label.inline-block i {
        margin-top: 1px;
        margin-left: 0px;
        vertical-align: middle;
        justify-content: center;
        display: flex;
    }
    .post-header a[href*="/forum/groups/verified"] .group-label {
        min-width: 20px;
        display: flex;
        justify-content: center;
    }
    .group-label {
        vertical-align: -6px;
    }



    You should land up with something like this


    As you can see, this forces the stars out of alignment, but I don’t think this is too much of a sacrifice, and could be remediated with additional targeted CSS if need be.

    Essentially, because NodeBB doesn’t provide an id field (which would be a lot easier), we have to use wildcard CSS such as .post-header a[href*="/forum/groups/verified"] but make it targeted in the sense that it will only fire if it is part of the post stream, hence .post-header at the beginning.

    We then use .post-header a[href*="/forum/groups/verified"] .group-label to target the actual label (but only when we have a wildcard match in the CSS) meaning we can set a minimum width so that the circle doesn’t look quashed (we need to validate this on Firefox though as additional CSS might be required due to how the webkit engine will render this in contrast to mozilla).

    Finally, we use .group-label to force alignment in terms of height to prevent it wandering out of the inline-block.

    This is already active on your forum, so nothing for you to do but (hopefully) admire 🙂

    Let me know.

    @phenomlab said in Custom badges:

    @crazycells @DownPW something of a “fresher” approach. Have a look at the below


    Using the messenger type view I created, it then becomes possible to place the “verified” group according to the style from the same view.

    This does mean some new CSS

    .self-post a[href*="/groups/verified"] .group-label {
        position: absolute !important;
        right: 51px;
        top: 44px;
    }
    .topic-response-post a[href*="/groups/verified"] .group-label {
        position: absolute !important;
        left: 20px;
        top: 44px;
    }
    .topic-response-post i[component="user/status"] {
        position: absolute;
        left: -1px;
    }


    And, more importantly, I found a more efficient way of adding classes in the messenger view js. The revised code is below

    // Target those elements already loaded in the DOM
    $(document).ready(function() {
        $(window).on('action:ajaxify.end', function(data) {
            $('li[component="post"]').each(function(i, obj) {
                if (!$(this).hasClass('self-post') || (!$(this).hasClass('self-post'))) {
                    console.log("Adding required classes for messenger type view");
                    $(this).addClass('topic-response-post');
                }

            });
        });
    });
    // Target elements dynamically added to the DOM on post load
    $(document).ready(function() {
        $(window).on('action:ajaxify.loaded', function(data) {
            $('li[component="post"]').each(function(i, obj) {
                if (!$(this).hasClass('self-post') || (!$(this).hasClass('self-post'))) {
                    console.log("Adding required classes for messenger type view");
                    $(this).addClass('topic-response-post');
                }

            });
        });
    });


    My style looks like it with those codes. There isjust seems some blue color of my checked icon 🙂


  • cagatayundefined cagatay referenced this topic on
  • @phenomlab said in Custom badges:

    @crazycells @DownPW something of a “fresher” approach. Have a look at the below


    Using the messenger type view I created, it then becomes possible to place the “verified” group according to the style from the same view.

    This does mean some new CSS

    .self-post a[href*="/groups/verified"] .group-label {
        position: absolute !important;
        right: 51px;
        top: 44px;
    }
    .topic-response-post a[href*="/groups/verified"] .group-label {
        position: absolute !important;
        left: 20px;
        top: 44px;
    }
    .topic-response-post i[component="user/status"] {
        position: absolute;
        left: -1px;
    }


    And, more importantly, I found a more efficient way of adding classes in the messenger view js. The revised code is below

    // Target those elements already loaded in the DOM
    $(document).ready(function() {
        $(window).on('action:ajaxify.end', function(data) {
            $('li[component="post"]').each(function(i, obj) {
                if (!$(this).hasClass('self-post') || (!$(this).hasClass('self-post'))) {
                    console.log("Adding required classes for messenger type view");
                    $(this).addClass('topic-response-post');
                }

            });
        });
    });
    // Target elements dynamically added to the DOM on post load
    $(document).ready(function() {
        $(window).on('action:ajaxify.loaded', function(data) {
            $('li[component="post"]').each(function(i, obj) {
                if (!$(this).hasClass('self-post') || (!$(this).hasClass('self-post'))) {
                    console.log("Adding required classes for messenger type view");
                    $(this).addClass('topic-response-post');
                }

            });
        });
    });


    My style looks like it with those codes. There isjust seems some blue color of my checked icon 🙂


    @cagatay you should remove those two CSS blocks your referenced as that’s what’s causing the odd looking blue circles over the avatar.

  • @cagatay you should remove those two CSS blocks your referenced as that’s what’s causing the odd looking blue circles over the avatar.

    @phenomlab which one i should remove?

  • @phenomlab which one i should remove?

    @cagatay These

    .self-post a[href*="/groups/verified"] .group-label {
        position: absolute !important;
        right: 51px;
        top: 44px;
    }
    .topic-response-post a[href*="/groups/verified"] .group-label {
        position: absolute !important;
        left: 20px;
        top: 44px;
    }
    .topic-response-post i[component="user/status"] {
        position: absolute;
        left: -1px;
    }

  • @cagatay These

    .self-post a[href*="/groups/verified"] .group-label {
        position: absolute !important;
        right: 51px;
        top: 44px;
    }
    .topic-response-post a[href*="/groups/verified"] .group-label {
        position: absolute !important;
        left: 20px;
        top: 44px;
    }
    .topic-response-post i[component="user/status"] {
        position: absolute;
        left: -1px;
    }


    @phenomlab its not work, nothing changed when i deleted those css.

  • @phenomlab its not work, nothing changed when i deleted those css.

    @cagatay what isn’t working?

  • @cagatay what isn’t working?

    @phenomlab there is no changes after deleted css code;


  • @cagatay what isn’t working?

    @phenomlab how can i set blue tick like sudonix to my own? coz codes which you are shared, it not look like yours;


  • @phenomlab how can i set blue tick like sudonix to my own? coz codes which you are shared, it not look like yours;


  • phenomlabundefined phenomlab referenced this topic on
  • @phenomlab i read it and did it what you wrote. but result as below;


    blue icon not seen, it hide by avatar 🙂

  • @phenomlab i read it and did it what you wrote. but result as below;


    blue icon not seen, it hide by avatar 🙂

    @cagatay Yes, having checked, I see what you mean. I’ve fixed this on your site.

    This is the new applied code

    .post-header a[href*="/groups/onaylı-üyeler"] {
        margin-right: 3px;
        margin-top: 1px;
        border-radius: 50%;
        line-height: 20px;
        display: inline-block;
        vertical-align: middle;
        text-align: center;
        overflow: hidden;
    }
    small.label.group-label.inline-block i {
        margin-top: 1px;
        margin-left: 0px;
        vertical-align: middle;
        justify-content: center;
        display: flex;
    }
    .post-header a[href*="/groups/onaylı-üyeler"] .group-label {
        min-width: 20px;
        display: flex;
        justify-content: center;
    }
    .self-post a[href*="/groups/onaylı-üyeler"] .group-label {
        position: absolute !important;
        right: 51px;
        top: 44px;
        z-index: 2;
    }
    .topic-response-post a[href*="/groups/onaylı-üyeler"] .group-label {
        position: absolute !important;
        left: 20px;
        top: 44px;
        z-index: 2;
    }
    .topic-response-post i[component="user/status"] {
        position: absolute;
        left: -1px;
    }
    .group-label {
        vertical-align: -6px;
    }


    However, there were some errors on your part. You were correct in renaming the actual group in CSS (good call) because of the language not being English, but the path was incorrect. You used the below, which was customized for @crazycells install 🙂

    /forum/groups/onaylı-üyeler


    It should be

    /groups/onaylı-üyeler


    You also have some overriding CSS somewhere that defines a lower z-index value which forces the “verified” icon behind the avatar, so I’ve added an adjustment for that

    z-index: 2;

  • @cagatay Yes, having checked, I see what you mean. I’ve fixed this on your site.

    This is the new applied code

    .post-header a[href*="/groups/onaylı-üyeler"] {
        margin-right: 3px;
        margin-top: 1px;
        border-radius: 50%;
        line-height: 20px;
        display: inline-block;
        vertical-align: middle;
        text-align: center;
        overflow: hidden;
    }
    small.label.group-label.inline-block i {
        margin-top: 1px;
        margin-left: 0px;
        vertical-align: middle;
        justify-content: center;
        display: flex;
    }
    .post-header a[href*="/groups/onaylı-üyeler"] .group-label {
        min-width: 20px;
        display: flex;
        justify-content: center;
    }
    .self-post a[href*="/groups/onaylı-üyeler"] .group-label {
        position: absolute !important;
        right: 51px;
        top: 44px;
        z-index: 2;
    }
    .topic-response-post a[href*="/groups/onaylı-üyeler"] .group-label {
        position: absolute !important;
        left: 20px;
        top: 44px;
        z-index: 2;
    }
    .topic-response-post i[component="user/status"] {
        position: absolute;
        left: -1px;
    }
    .group-label {
        vertical-align: -6px;
    }


    However, there were some errors on your part. You were correct in renaming the actual group in CSS (good call) because of the language not being English, but the path was incorrect. You used the below, which was customized for @crazycells install 🙂

    /forum/groups/onaylı-üyeler


    It should be

    /groups/onaylı-üyeler


    You also have some overriding CSS somewhere that defines a lower z-index value which forces the “verified” icon behind the avatar, so I’ve added an adjustment for that

    z-index: 2;


    @phenomlab ah okey Mark 🙂 you as always better then me so there is no word in my side for the explaniton 🙂

    thank you again.

  • @phenomlab ah okey Mark 🙂 you as always better then me so there is no word in my side for the explaniton 🙂

    thank you again.

    @cagatay said in Custom badges:

    @phenomlab ah okey Mark 🙂 you as always better then me so there is no word in my side for the explaniton 🙂

    thank you again.

    hi @cagatay , as a first step you have to create a group called “verified” , then everything is as it is written on this thread… but since your group name was different, it gave an error…

    I am writing this explicitly so that others can be aware.

  • @cagatay said in Custom badges:

    @phenomlab ah okey Mark 🙂 you as always better then me so there is no word in my side for the explaniton 🙂

    thank you again.

    hi @cagatay , as a first step you have to create a group called “verified” , then everything is as it is written on this thread… but since your group name was different, it gave an error…

    I am writing this explicitly so that others can be aware.

    @crazycells said in Custom badges:

    I am writing this explicitly so that others can be aware.

    Good point. Thanks

  • @crazycells said in Custom badges:

    I am writing this explicitly so that others can be aware.

    Good point. Thanks

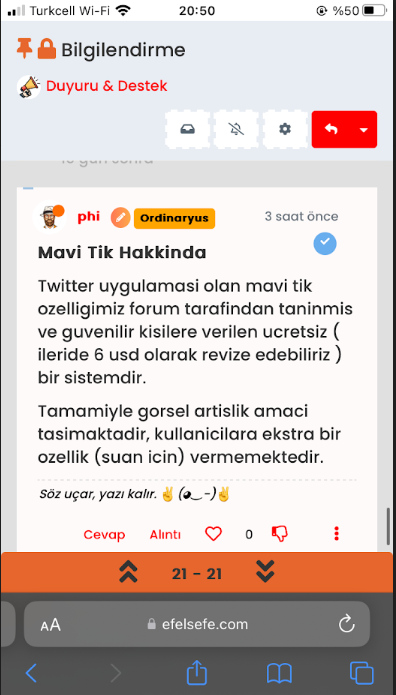

    @phenomlab i have problem with my badges for ios and android users.

    i can secret all of from mobile users?

  • @phenomlab i have problem with my badges for ios and android users.

    i can secret all of from mobile users?

    @cagatay Are they showing on mobile ? Can you send a screenshot ?

  • @cagatay Are they showing on mobile ? Can you send a screenshot ?

    @phenomlab sure,



Did this solution help you?
Did you find the suggested solution useful? Support 💗 Sudonix with a coffee
If your organisation needs deeper expertise around infrastructure, security, or technology leadership, learn more about Phenomlab Ltd. Many of the deeper technical guides behind Sudonix are published there.

Related Topics
  • Custom Page - nodebb

    Solved Customisation custom-pages nodebb
    13
    2
    5 Votes
    13 Posts
    937 Views
    I’m happy to see this
  • Page control arrows for PWA

    Solved Customisation nodebb
    27
    25 Votes
    27 Posts
    9k Views
    @crazycells it is, yes - I think I’ll leave it as there is no specific PWA CSS classes I know of. Well, you could use something like the below, but this means multiple CSS files for different operating systems. /** * Determine the mobile operating system. * This function returns one of 'iOS', 'Android', 'Windows Phone', or 'unknown'. * * @returns {String} */ function getMobileOperatingSystem() { var userAgent = navigator.userAgent || navigator.vendor || window.opera; // Windows Phone must come first because its UA also contains "Android" if (/windows phone/i.test(userAgent)) { return "Windows Phone"; } if (/android/i.test(userAgent)) { return "Android"; } if (/iPad|iPhone|iPod/.test(userAgent) && !window.MSStream) { return "iOS"; } return "unknown"; // return “Android” - one should either handle the unknown or fallback to a specific platform, let’s say Android } Once you’re in that rabbit hole, it’s impossible to get out of it.
  • nodebb-plugin-custom-pages

    Solved Customisation plugin custom-pages
    5
    2
    3 Votes
    5 Posts
    4k Views
    @DownPW it’s possible, yes, but you may inadvertently end up targeting other elements using the same class which of course isn’t desired. Can you provide a link in DM for me to review?
  • Nodebb design

    Solved General nodebb
    2
    1 Votes
    2 Posts
    930 Views
    @Panda said in Nodebb design: One negative is not being so good for SEO as more Server side rendered forums, if web crawlers dont run the JS to read the forum. From recollection, Google and Bing have the capability to read and process JS, although it’s not in the same manner as a physical person will consume content on a page. It will be seen as plain text, but will be indexed. However, it’s important to note that Yandex and Baidu will not render JS, although seeing as Google has a 90% share of the content available on the web in terms of indexing, this isn’t something you’ll likely lose sleep over. @Panda said in Nodebb design: The “write api” is preferred for server-to-server interactions. This is mostly based around overall security - you won’t typically want a client machine changing database elements or altering data. This is why you have “client-side” which could be DOM manipulation etc, and “server-side” which performs more complex operations as it can communicate directly with the database whereas the client cannot (and if it can, then you have a serious security flaw). Reading from the API is perfectly acceptable on the client-side, but not being able to write. A paradigm here would be something like SNMP. This protocol exists as a UDP (UDP is very efficient, as it is “fire and forget” and does not wait for a response like TCP does) based service which reads performance data from a remote source, thus enabling an application to parse that data for use in a monitoring application. In all cases, SNMP access should be “RO” (Read Only) and not RW (Read Write). It is completely feasible to assume complete control over a firewall for example by having RW access to SNMP and then exposing it to the entire internet with a weak passphrase. You wouldn’t do it (at least, I hope you wouldn’t) and the same ethic applies to server-side rendering and the execution of commands.
  • Difficult to move posts now, on mobile.

    Bugs nodebb
    16
    1
    5 Votes
    16 Posts
    4k Views
    @DownPW Yes, it is. It’s set far too low meaning other elements with a higher preference will sit over the top of it.
  • Want to use Sudonix themes ?

    Chitchat themes nodebb
    80
    1
    34 Votes
    80 Posts
    17k Views
    omg thank you Mark.
  • [NodeBB] Custom fields plugin

    Unsolved Customisation nodebb plugins javascript custom
    5
    0 Votes
    5 Posts
    2k Views
    @pwsincd hi. Just following up on this thread (I know it’s old) but was curious to understand if it’s still an issue or not ?
  • [NODEBB] Reply Button/arrow answer

    Solved Customisation css nodebb
    25
    4
    4 Votes
    25 Posts
    7k Views
    Topic open https://sudonix.com/topic/207/nodebb-help-for-my-custom-css
